How to Read a Water Meter: Mechanical, Digital and Dial Registers

Your water meter is the one instrument that sees every gallon your building uses. Reading it takes about a minute once you know where to look, and it is the fastest way to check a bill, confirm a repair, or catch a leak. The EPA estimates the average household's leaks waste more than 10,000 gallons a year, and most of that never shows up as a puddle.

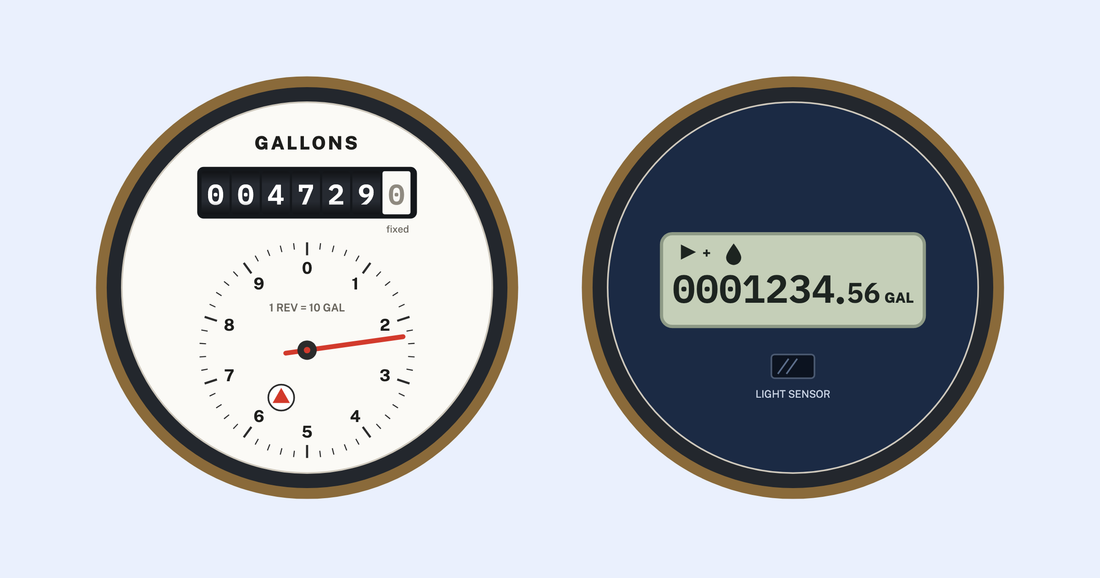

This guide covers the two register types you will see on almost every meter today, mechanical and digital, plus the older round-dial style.

Every reading needs three things

• Units. Gallons, cubic feet or cubic meters. It is printed on the face of the register.
• The decimal. Where the whole units end. Look for a decimal point, a color change in the number wheels, or fixed zeros.
• The dial. Where the sweep hand points. It fills in the smallest digit.

Open the meter lid, wipe the glass, and find those three before you write anything down.

Mechanical registers

This is the most common register. It has rolling number wheels like a car odometer plus a large sweep hand. You will find it on the Neptune T-10, Badger Recordall, Sensus SR II and most meters under 2 inches.

Example: the wheels show 004729, the last zero is fixed, and the sweep hand points to 2. The reading is 47,292 gallons.

1. Check the units. The word on the face (GALLONS, CU FT, ft³ or m³) tells you what you are counting. If you also see x10 or x100, multiply your reading by that number.
2. Read every digit, left to right. Include any printed zero at the end. A fixed zero is a placeholder for the sweep hand. If some wheels are a different color, those are the small units after the decimal.
3. Read the sweep hand. Check what one turn equals (in the example, 1 REV = 10 GAL). The number it points to replaces the fixed zero, or becomes the next decimal place.
4. Watch the low-flow indicator. This small triangle or star spins with any flow at all. If it moves while every fixture is off, water is going somewhere.

The number wheels come in two common layouts:

Digital registers (LCD)

Newer meters such as the Sensus iPERL, Neptune E-Coder and MACH 10, Badger E-Series and Kamstrup meters use a screen instead of wheels. The screen sleeps to save battery, so you may have to wake it first.

Example: the display reads 0001234.56 GAL, so the reading is 1,234.56 gallons.

1. Check the units next to the number: GAL, ft³ or m³.
2. Find the decimal point. LCDs show it directly, and the digits after it are often smaller. Write them down. They show small usage quickly.
3. Check the flow icons. An arrow or plus sign means water is moving right now. A minus sign means reverse flow. A drop or faucet icon is the meter's own leak indicator. On the Neptune E-Coder, for example, a flashing leak icon means water was used in at least 50 of the last 96 fifteen-minute intervals.
4. Wake the screen. Some registers, like the Neptune E-Coder, are powered by a small solar panel on the face, so shine a flashlight on it. Others wake when you open the lid or touch a button on the face. If the screen is blank, try both.

The most common mistake on a digital meter is reading the wrong screen. Many registers alternate between the running total and the current flow rate. Wait for the total.

Round-dial registers

Older meters may have a row of small dials instead of number wheels. Each dial is worth ten times the one to its right. They are rare today but still turn up in older buildings.

Example: the dials read 0, 4, 7, 2, 9. The 100 dial looks like 3, but the 10 dial has not passed 0 yet, so it reads 2. Add a zero for the ones place: 47,290 gallons.

• Read left to right. Start at the largest dial and write one digit per dial.
• Mind the direction. Neighboring dials turn opposite ways. Follow the numbers, not the clock.
• Between two numbers, take the lower one. If a hand sits right on a number, check the dial to its right. If that one has not passed 0 yet, use the lower number.

Units at a glance

Utility bills often use different units than the meter. Convert both to gallons before you compare them. One cubic foot is 7.48 gallons.

Use your meter to check for leaks

The EPA's test is simple: read the meter before and after a two-hour period when no water is being used. If the reading changes at all, you probably have a leak. On a mechanical register, the low-flow indicator will show it even faster.

The catch in a multifamily or commercial building is that the water is never off. Someone is always showering, washing or watering, so a quiet two-hour window rarely exists. Leaks hide inside normal use, from running toilets to irrigation breaks to slab leaks a monthly bill will never catch.

Or let the meter read itself

Walking out to the meter works for a spot check. It does not tell you what happened at 3 AM last Tuesday. The NOWi Meter Monitor straps onto your existing meter with no plumbing work and sends minute-by-minute usage over cellular, so leaks show up as they start instead of on next month's bill.

That timing is what finds the cause. A boiler leaking 160 gallons an hour or a portfolio where most buildings were already leaking looks obvious in the data and invisible on a bill. It also tells maintenance the moment a repair worked, instead of waiting 30 to 60 days for the next bill to find out. For the numbers behind it, see what a water monitoring system is worth.
